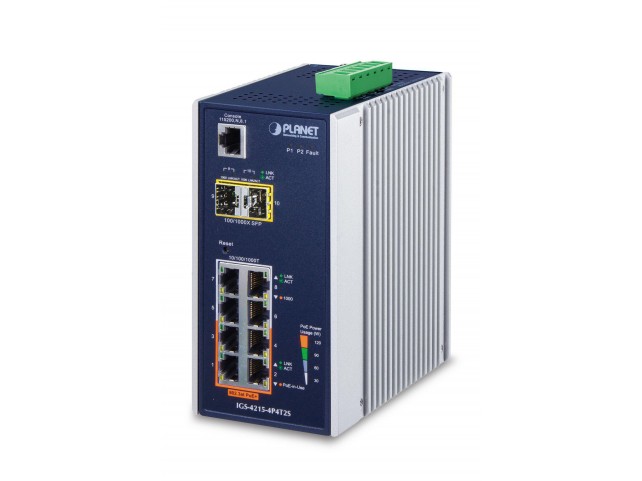

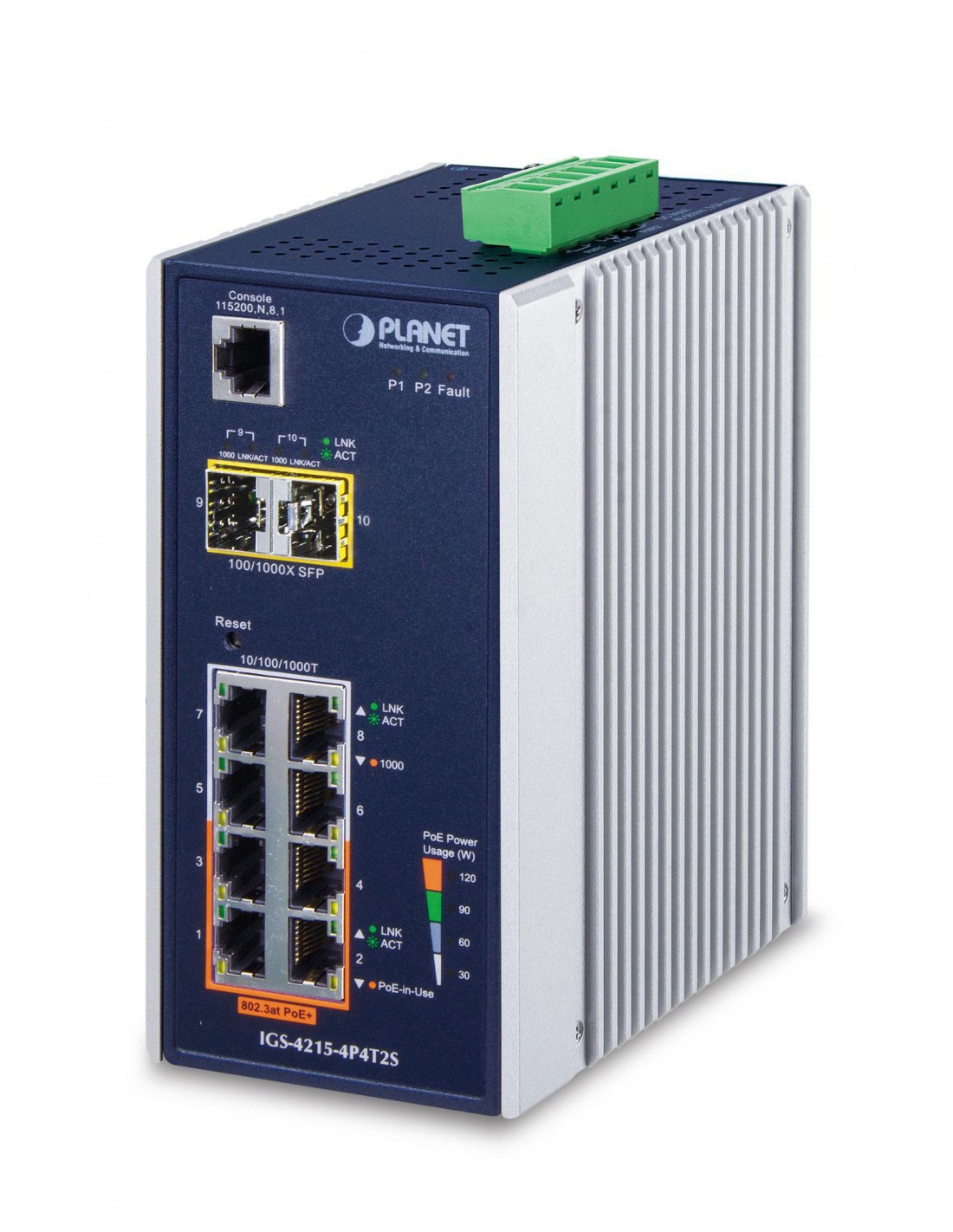

IP30 Industrial L2/L4 4-Port 10/100/1000T 802.3at PoE
Planet
DS1_IGS-4215-4P4T2S
Immediatamente Disponibile
456,04 €
Tasse incluse
- Data di consegna prevista:
-
Corriere Standard - Acquista entro e ricevilo Martedì 13 Maggio, 2025
- Physical Port
- 8-port 10/100/1000BASE-T Gigabit RJ45 copper with 4-port IEEE 802.3at/af PoE Injector (Port-1 to Port-4)
- 2 100/1000BASE-X mini-GBIC/SFP slots, SFP type auto detection
- RJ45 console interface for switch basic management and setup
- Power over Ethernet
- Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
- Backward compatible with IEEE 802.3af Power over Ethernet
- Up to 4 ports of IEEE 802.3af/802.3at devices powered
- Supports PoE power up to 36 watts for each PoE port
- Auto detects powered device (PD)
Specifiche del prodotto
| Data transmission | |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| MAC address table | 8000 voci |
| Number of trunks | 4 |
| Packet buffer memory | 4,1 MB |
| Store-and-forward | Yes |
| Switching capacity | 20 Gbit/s |
| Throughput | 14,8 Mpps |
| Design | |
| Certification | FCC 15 A, CE |
| DIN rail mounting | Yes |
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| LED indicators | Activity, Link, PoE, Power, System |
| Product colour | Blue, White |
| Rack mounting | No |
| Reset button | Yes |
| Safety | IEC 60068-2-32, IEC 60068-2-27, IEC 60068-2-6 |
| Stackable | No |
| Wall mountable | Yes |
| Legal Information | |
| EU ECCN Code | 5A002 |
| UNSPSC Code | 43222612 |
| US ECCN Code | 5A002 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| ARP inspection | Yes |
| MIB support | RFC 1215, RFC 1493, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3635 |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L4 |
| Switch type | Managed |
| System event log | Yes |
| Traffic classification | Yes |
| Web-based management | Yes |
| Multicast features | |
| Multicast support | Yes |
| Number of multicast groups filtered | 256 |
| Network | |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-LX, 1000BASE-SX |
| Flow control support | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Number of VLANs | 256 |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | Stacked VLAN, Private VLAN, Protocol-based VLAN |
| VLAN support | Yes |
| Operational conditions | |
| Heat dissipation | 523,8 BTU/h |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 85 °C |
| Optical fiber | |
| Fiber ethernet cabling technology | 100BASE-FX, 1000BASE?BX, 1000BASE?LX, 1000BASE?SX |
| Other features | |
| Terminal block port | Yes |
| Package dimensions (verified) | |
| Depth Verified | 17,6 cm |
| Gross Weight Verified | 1,338 kg |
| Height Verified | 9,4 cm |
| Width Verified | 30,5 cm |
| Performance | |
| Firmware upgradeable | Yes |
| Harmonized System (HS) code | 85176990 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| SFP module slots quantity | 2 |
| Power | |
| DC input voltage | 48 - 56 V |
| Input current | 3.5 A |
| Power consumption (max) | 152,96 Watt |
| Power consumption (typical) | 5,04 Watt |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 8,96 Watt |
| Power over Ethernet (PoE) voltage range | 48 - 56 V |
| Total Power over Ethernet (PoE) budget | 144 Watt |
| Product dimensions | |
| Net Weight (Product, kg) | 1 kg |
| Product Depth | 10,73 cm |
| Product Height | 15,2 cm |
| Product Width | 7,68 cm |
| Security | |
| Access Control List (ACL) | Yes |
| Authentication | Port-based authentication |
| BPDU filtering/protection | Yes |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| IP-MAC-Port binding | Yes |
| MAC address filtering | Yes |
| Security algorithms | 128-bit SSL, 802.1x RADIUS, SNMP, SSH |
| SSH/SSL support | Yes |
| Static port security | Yes |
| Vendor information | |
| Brand Name | Planet |
| Warranty | 5 Anno(i) |
