Single Port 10/100/1000Mbps Ultra POE Injector...

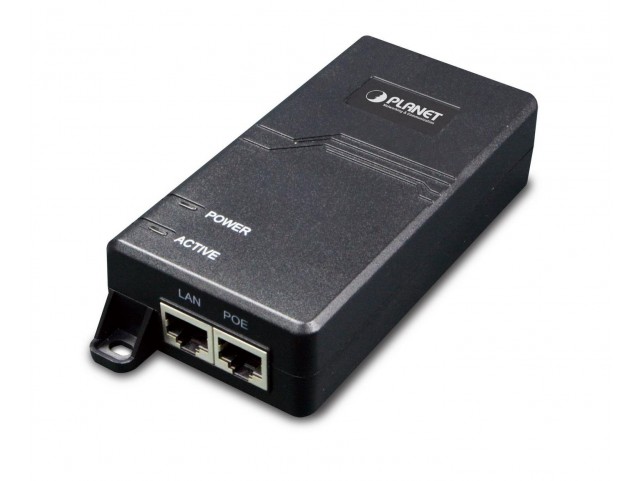

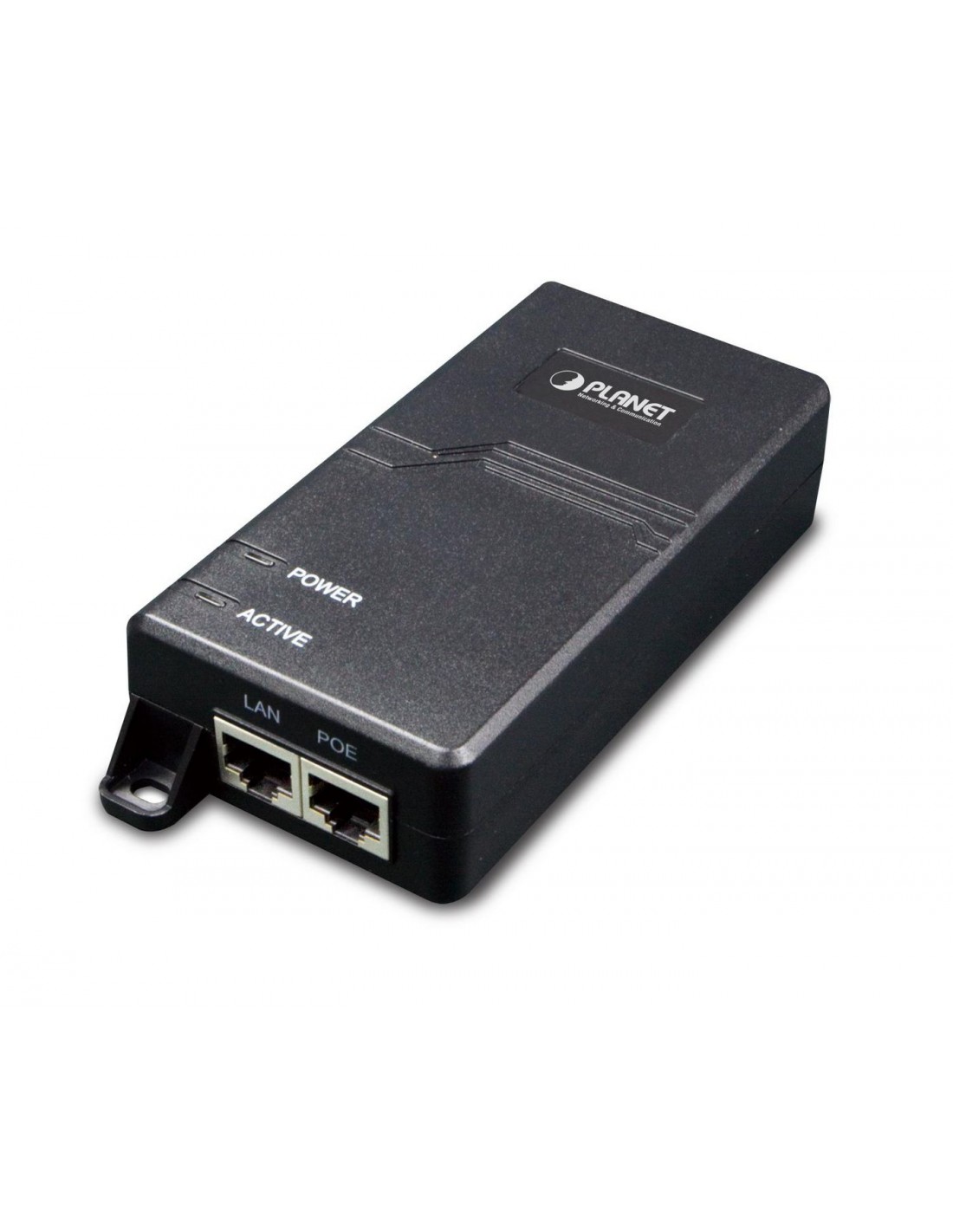

Single Port 10/100/1000Mbps Ultra POE Injector (60 Watts)

Single Port 10/100/1000Mbps Ultra POE Injector (60 Watts)

Planet
DS1_POE-173
Immediatamente Disponibile
87,06 €
Tasse incluse

  • Data di consegna prevista:
  • UPS EXPRESS
    UPS EXPRESS - Acquista entro e ricevilo Mercoledì 18 Giugno, 2025
  • Corriere Standard
    Corriere Standard - Acquista entro e ricevilo Martedì 24 Giugno, 2025


  • Interface
  • 2 x RJ-45 interfaces
  • 1-Port 10/100/1000Mbps Data + Power output- 1-Port 10/100/1000Mbps Data input
  • 1 x AC 100-240V input power socket
  • Power over Ethernet
  • Ultra Power over Ethernet PSE
  • Up to 60 watts of power on 4-pairs UTP
  • Backward compatible with IEEE 802.3at/af PD device
  • Auto-detection of PoE IEEE 802.3at/af equipment and devices from being damaged by incorrect installation
  • Remote power feeding up to 100m

Specifiche del prodotto

Design
CertificationFCC Part 15 Class B, CE
LED indicatorsActivity, PoE, Power
Product colourBlack
Rack mountingNo
StackableNo
Features
LED indicatorsActivity, PoE, Power
Legal Information
EU ECCN CodeN/A
UNSPSC Code43222612
US ECCN Code5A992
Logistics data
Harmonized System (HS) code85176990
Network
10G supportNo
Cable types supportedCat3, Cat4, Cat5, Cat5e, Cat6
Compliance industry standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3af
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Ethernet LAN data rates10, 100, 1000
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Power over Ethernet (PoE)Yes
Operational conditions
Operating altitude0 - 100 m
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)0 - 50 °C
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-10 - 70 °C
Other features
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Package dimensions (verified)
Depth Verified10,5 cm
Gross Weight Verified0,404 kg
Height Verified9,1 cm
Width Verified16,4 cm
Performance
Harmonized System (HS) code85176990
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity2
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Ethernet LAN (RJ-45) ports2
Power
AC adapter frequency50/60 Hz
AC adapter input voltage100 - 240 V
Input current1.2 A
Power consumption (max)60 Watt
Power consumption (typical)60 Watt
Power over Ethernet (PoE) voltage50 V
Power supply includedYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) power per port60 Watt
Power over Ethernet (PoE) voltage50 V
Total Power over Ethernet (PoE) budget60 Watt
Product dimensions
Net Weight (Product, kg)0,24 kg
Product Depth6,25 cm
Product Height3,1 cm
Product Width11,5 cm
Vendor information
Brand NamePlanet
Warranty3 Anno(i)
Weight & dimensions
Dimensions (WxDxH)115 x 62.5 x 31 mm
