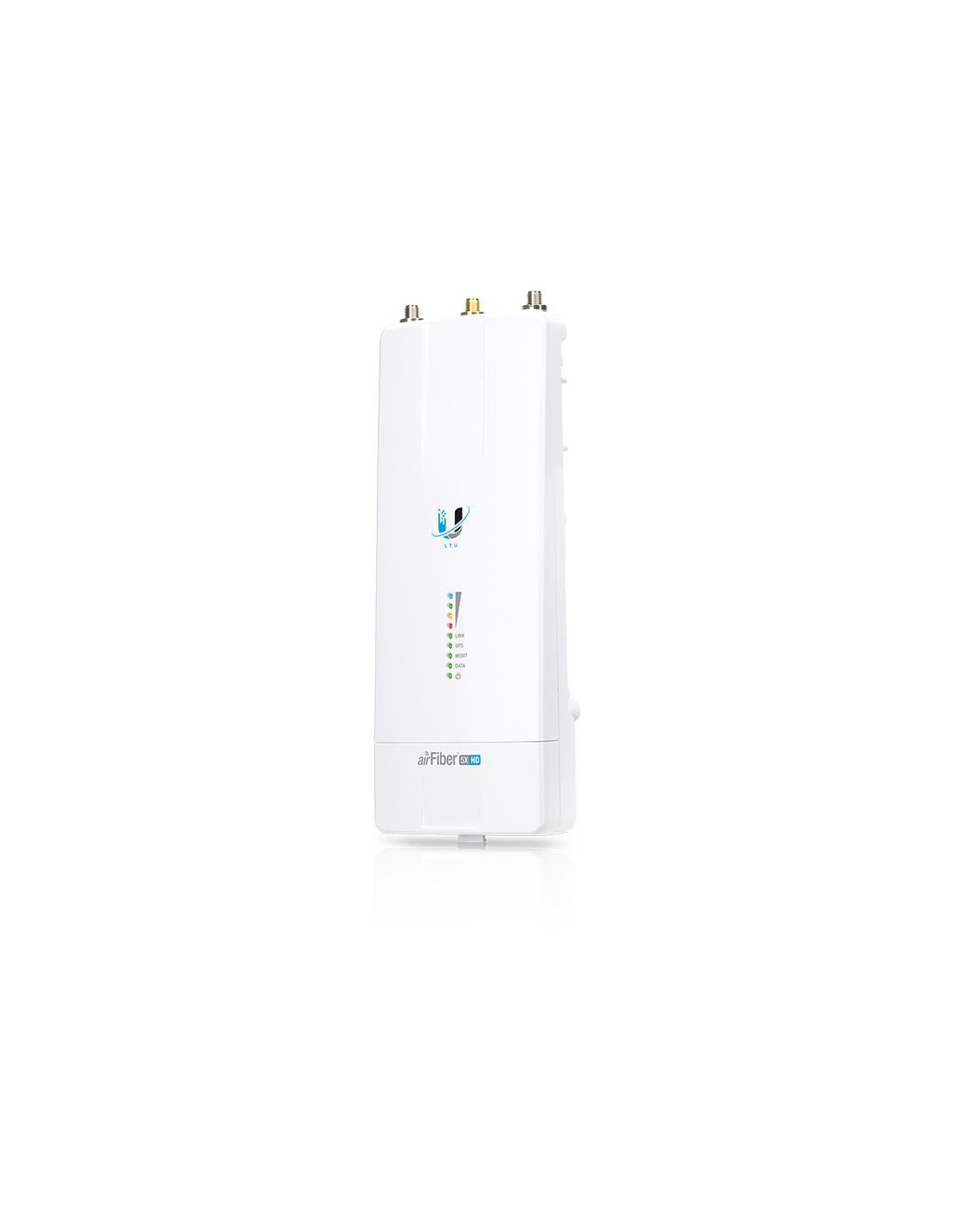

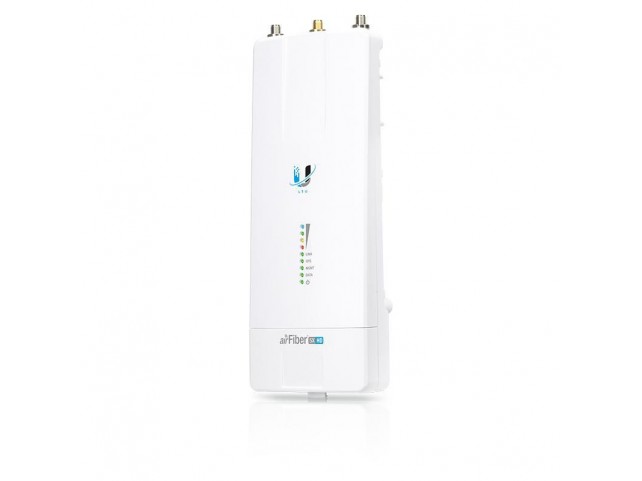

airFiber 5XHD PTP LTU AirFiber AF-5XHD, 1000
airFiber 5XHD PTP LTU AirFiber AF-5XHD, 1000

airFiber 5XHD PTP LTU AirFiber AF-5XHD, 1000

UBIQUITI
DS1_AF-5XHD
Immediatamente Disponibile
513,01 €
Tasse incluse

  • Data di consegna prevista:
  • UPS EXPRESS
    UPS EXPRESS - Acquista entro e ricevilo Mercoledì 11 Giugno, 2025
  • Corriere Standard
    Corriere Standard - Acquista entro e ricevilo Martedì 17 Giugno, 2025


  • 1 Gbps+ Throughput
  • 4096 QAM Modulation
  • 2 Million+ Packets per Second
  • Proprietary RF Filtering

Specifiche del prodotto

Antenna
Antenna connector typeRP-SMA
Antenna typeExternal
Number of connectors3
Design
CertificationFCC
InternalNo
International Protection (IP) codeIP67
PlacementWall
Product colourWhite
Features
2.4 GHzNo
5 GHzYes
Channel bandwidth100 MHz
Channels quantity8 canali
Ethernet LAN data rates10, 100, 1000
Frequency band5.150 - 5.250 / 5.740 - 5.850 GHz
GPS (satellite)Yes
Maximum data transfer rate1000 Mbit/s
Maximum outdoor range200000 m
MIMOYes
ModulationQAM
Throughput data rate1340 Mbit/s
Transmitting power29 dBmW
Operational conditions
Operating temperature (T-T)-40 - 55 °C
Package dimensions (verified)
Depth Verified11,4 cm
Gross Weight Verified1,08 kg
Height Verified11,1 cm
Width Verified26,4 cm
Packaging data
Mounting kitYes
Number of products included1 pz
Performance
Built-in processorYes
Operating system installedAirOS
Ports & interfaces
DC-in jackYes
Ethernet LAN (RJ-45) ports2
Power
AC input voltage20 - 50 V
Input voltage20 - 50 V
Output current1 A
Output voltage24 V
Power consumption (max)12 Watt
Power over Ethernet (PoE)Yes
Product dimensions
Net Weight (Product, kg)0,35 kg
Product Depth4,8 cm
Product Height22,4 cm
Product Width8,2 cm
Security
Security algorithms256-bit AES
Technical details
Harmonized System (HS) code85176990
Vendor information
Brand NameUbiquiti
Warranty2 Anno(i)
