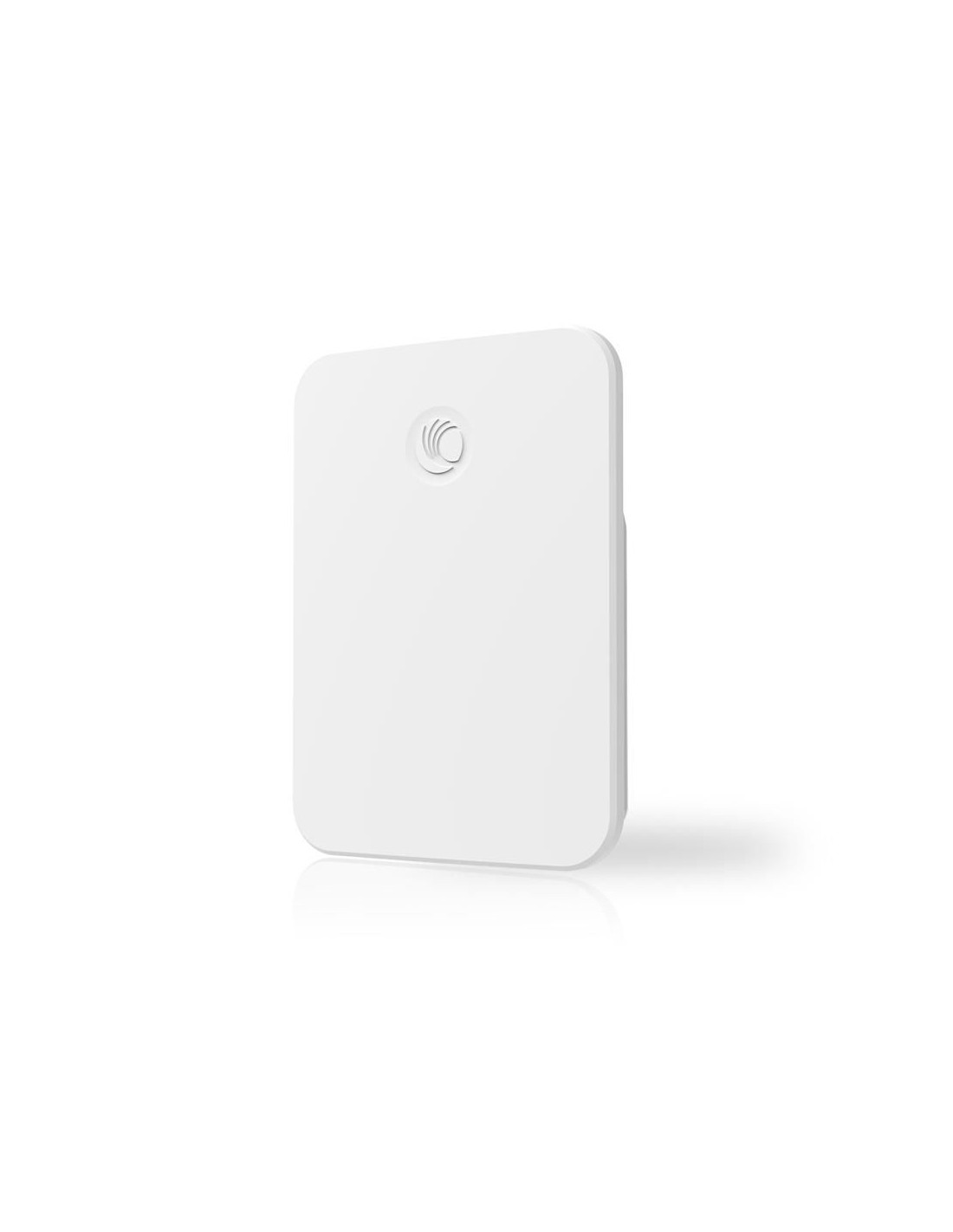

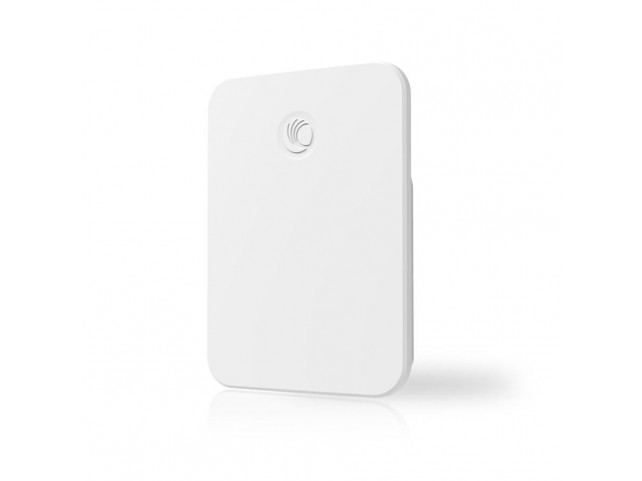

Cambium Networks cnPilot e510 Outdoor (EU) 802.11ac wave 2, 2x2, 8 dBi,
Cambium Networks
DS1_PL-E510X00A-EU
Ordinabile in 12 - 18 Giorni
785,49 €
Tasse incluse
- 802.11 a/b/g/n/ac Wave 2
- Omni-directional antenna coverage
- IP67 rated housing, UV protection, -40ºC to 65ºC
- 5 GHz (2x2), 2.4 GHz (2x2)
- Shock & Vibration rail certified
Specifiche del prodotto
| Antenna | |
| Antenna direction type | Omni-directional |
| Antenna gain level (max) | 8 dBi |
| Antenna type | Internal |
| Design | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Certification | Wi-Fi Alliance 80211a/b/g/n/ac, Passpoint 2.0, FCC, ETSI, CE, EN 60601-1-2, IEC60950, Ul2043 |
| International Protection (IP) code | IP67 |
| LED indicators | Yes |
| Placement | Wall |
| Product colour | White |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Ethernet LAN data rates | 1000 |
| Maximum data transfer rate | 1267 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 400 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Networking standards | IEEE 802.11e, IEEE 802.11r, IEEE 802.11w, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Number of VLAN IDs | 4096 |
| Number of WLAN connections (max) | 256 |
| Quality of Service (QoS) support | Yes |
| VLAN support | Yes |
| Legal Information | |
| EU ECCN Code | N/A |
| UNSPSC Code | 43222640 |
| US ECCN Code | 5A992.c |
| Management features | |
| Web-based management | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -40 - 65 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Package dimensions | |
| Gross Weight (Package, kg) | 3 kg |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (max) | 12,5 Watt |
| Power consumption (typical) | 10 Watt |
| Power over Ethernet (PoE) | No |
| Product dimensions | |
| Net Weight (Product, kg) | 2 kg |
| Product Depth | 21,5 cm |
| Product Height | 6,5 cm |
| Product Width | 32 cm |
| Protocols | |
| DHCP server | Yes |
| Supported protocols | VHT MCS rates, 256-QAM, HT20/40/80 MHz Transmit beamsteering, Airtime Fairness, Packet Aggregation (AMSDU, AMPDU) RIFS, STBC, LDPC MIMO Power Save, MRC |
| Security | |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Number of SSID supported | 16 |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Security algorithms | EAP-AKA, EAP-FAST, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, SNMP, SSL/TLS, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-Enterprise |
| Wireless Intrusion Detection System (WIDS) | Yes |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Vendor information | |
| Brand Name | Cambium Networks |
| Warranty | 3 Anno(i) |
