Planet IP40 Industrial 4P 10/100/1000 802.3at...

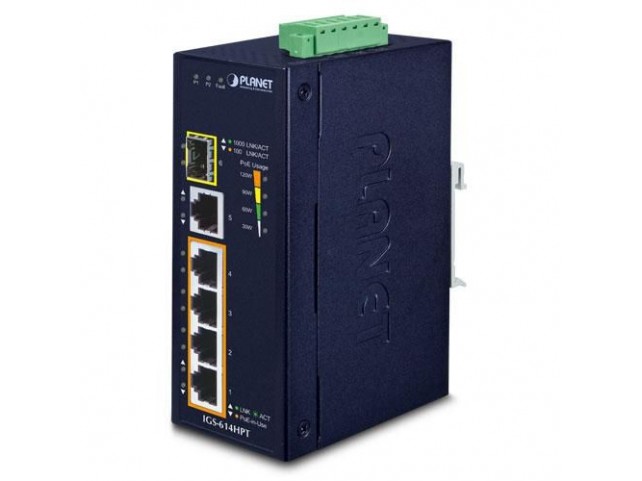

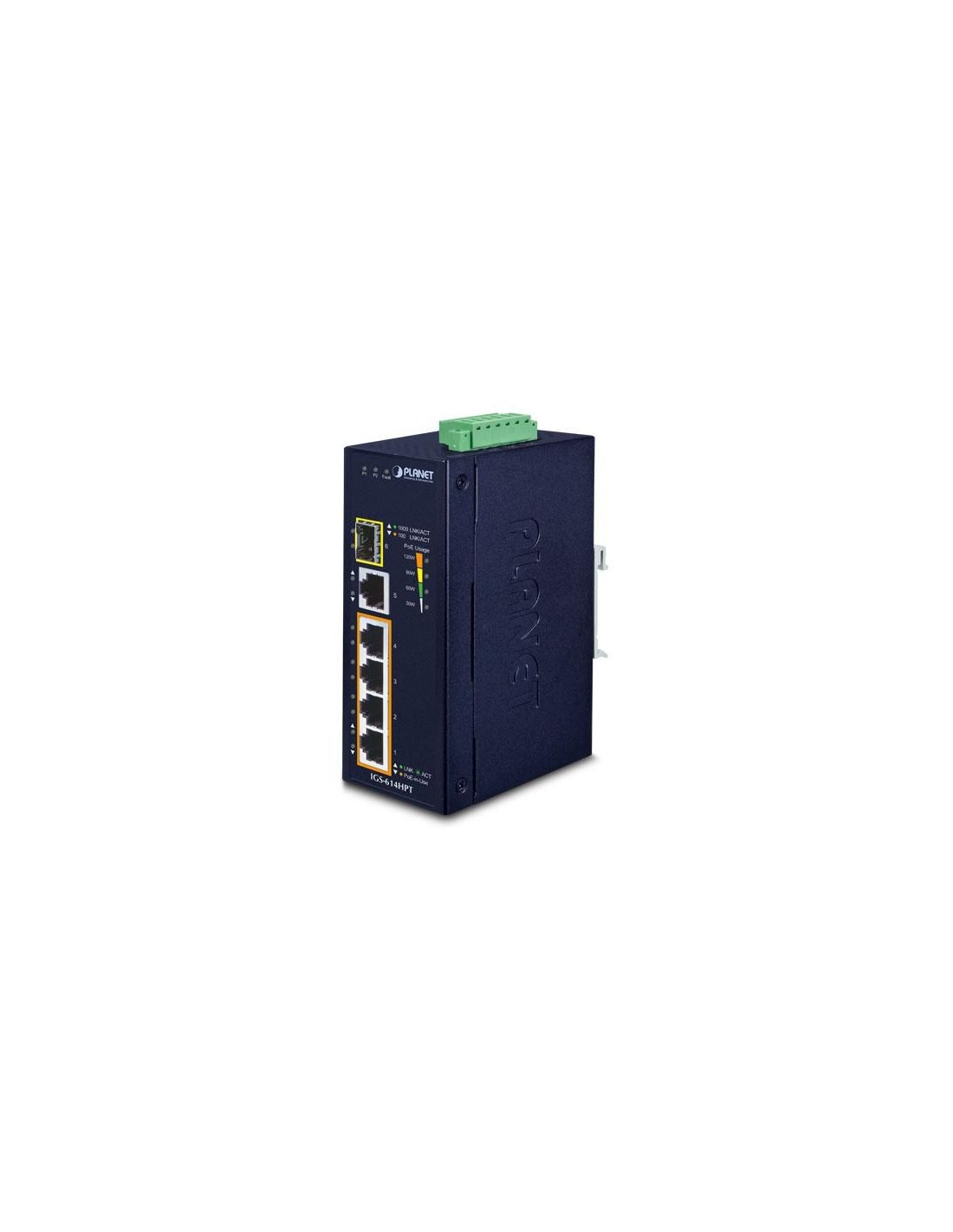

Planet IP40 Industrial 4P 10/100/1000 802.3at PoE + 1-P 10/100/1000T

Planet IP40 Industrial 4P 10/100/1000 802.3at PoE + 1-P 10/100/1000T

Planet
DS1_IGS-614HPT
Immediatamente Disponibile
356,97 €
Tasse incluse

  • Data di consegna prevista:
  • UPS EXPRESS
    UPS EXPRESS - Acquista entro e ricevilo Mercoledì 7 Maggio, 2025
  • Corriere Standard
    Corriere Standard - Acquista entro e ricevilo Martedì 13 Maggio, 2025


  • 5 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
  • One SFP slot, supporting 1000BASE-X and 100BASE-FX transceiver in dual modes
  • Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
  • Backward compatible with IEEE 802.3af Power over Ethernet
  • Up to 4 ports of IEEE 802.3af/at devices powered
  • Up to 120-watt PoE budget
  • Supports PoE power up to 36 watts for each PoE port
  • Each port supports 54V DC power to PoE powered device
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports

Specifiche del prodotto

Data transmission
Jumbo frames9000
Jumbo frames supportYes
MAC address table4000 voci
Store-and-forwardYes
Switching capacity12 Gbit/s
Throughput8,93 Mpps
Design
CertificationFCC Part 15 Class A, CE IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
DIN rail mountingYes
Housing materialMetal
International Protection (IP) codeIP40
Product colourBlue
Wall mountableYes
Legal Information
UNSPSC Code43222612
Management features
Switch typeUnmanaged
Network
Auto MDI/MDI-XYes
Flow control supportYes
Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Operational conditions
Operating relative humidity (H-H)5 - 90 %
Operating temperature (T-T)-40 - 75 °C
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 75 °C
Package dimensions (verified)
Depth Verified14,5 cm
Gross Weight Verified0,812 kg
Height Verified9,5 cm
Width Verified20,8 cm
Packaging data
ManualYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Fast Ethernet (copper) ports quantity5
Power
DC input voltage12 - 56 V
Input current7 A
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) power per port54 Watt
Power over Ethernet (PoE) type supportedPoE+
Power over Ethernet (PoE) voltage36 V
Power over Ethernet plus (PoE+) ports quantity4
Product dimensions
Net Weight (Product, kg)0,67 kg
Product Depth8,7 cm
Product Height13,5 cm
Product Width5 cm
Vendor information
Brand NamePlanet
Warranty5 Anno(i)
