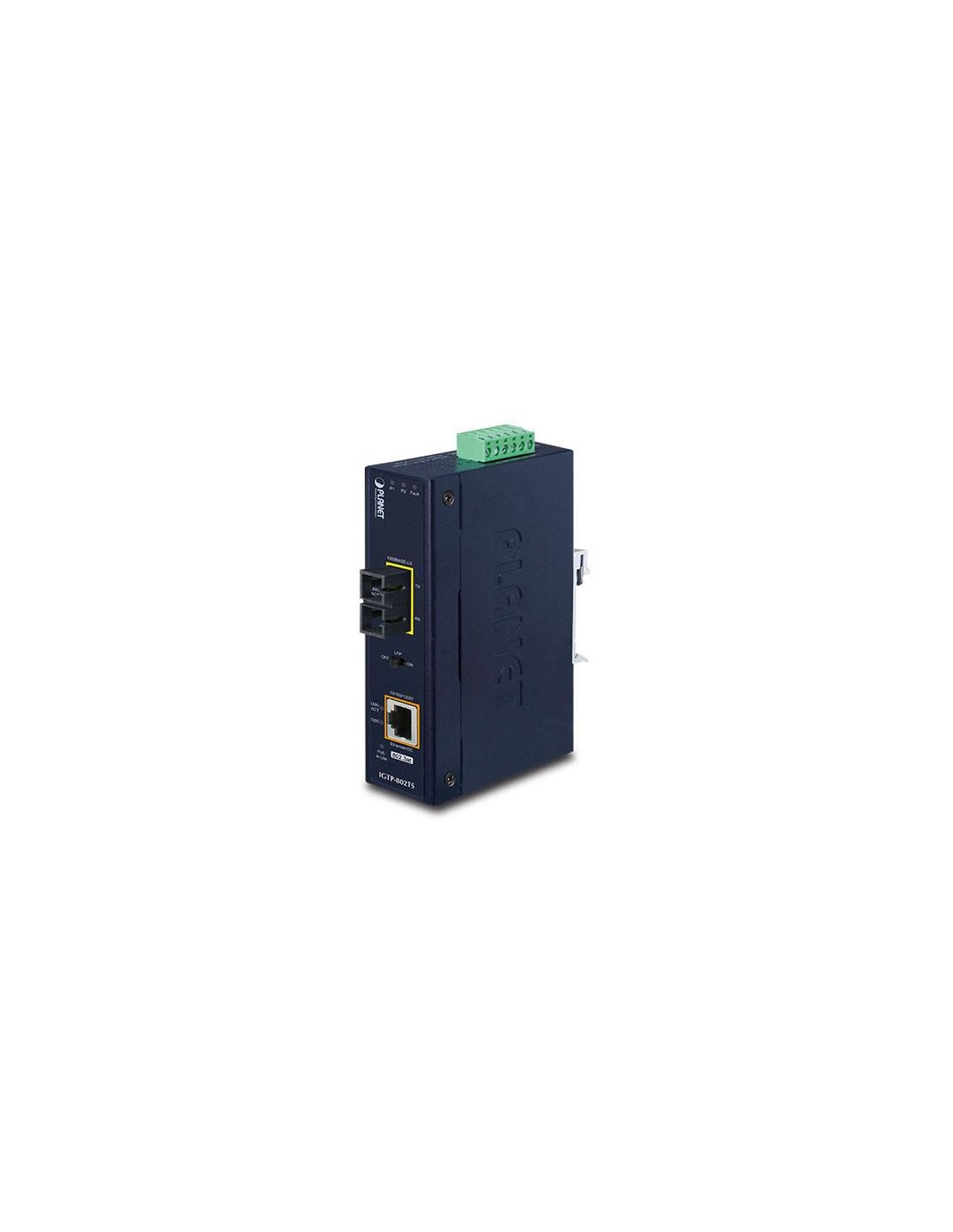

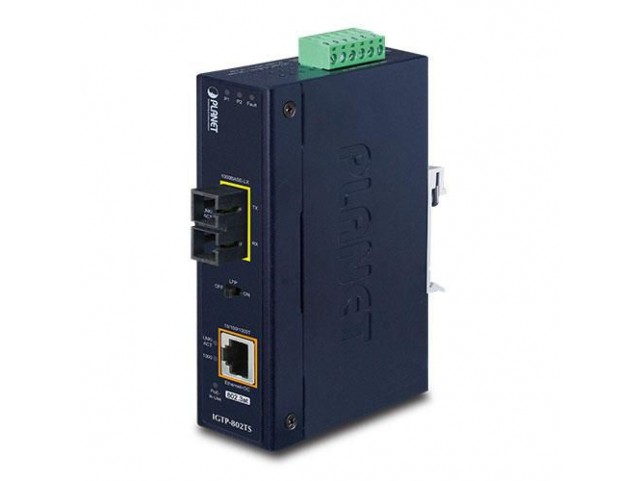

Planet IP30 Industrial 10/100/1000BAS to 100/1000BASE-LX Converter
Planet
DS1_IGTP-802TS
Immediatamente Disponibile
236,05 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Mercoledì 7 Maggio, 2025 -
Corriere Standard - Acquista entro e ricevilo Martedì 13 Maggio, 2025
- Physical Port
- 1-port 10/100/1000BASE-T RJ45 with IEEE 802.3af /802.3at PoE+ Injector
- 1 1000BASE-SX/LX SC Fiber interface (IGTP-802T/IGTP-802TS)
- 1 SFP port, supporting 1000BASE-X and 100BASE-FX transceiver dual mode (IGTP-805AT)
- Power over Ethernet
- Complies with IEEE 802.3at/af PoE Plus end-span PSE
- 1 IEEE 802.3at/af device powered
- Supports PoE Power up to 30.8 watts for PoE port
- Provides DC 52V power over RJ45 Ethernet cable to PD with Ethernet port
- Auto-detects IEEE 802.3at/af equipment and protects devices from being damaged by incorrect installation
Specifiche del prodotto
| Design | |
| Certification | FCC Part 15 Class A, CE |
| DIN rail mounting | Yes |
| Housing material | Metal |
| Internal | No |
| International Protection (IP) code | IP30 |
| LED indicators | Yes |
| Product colour | Blue |
| Legal Information | |
| UNSPSC Code | 43201553 |
| Network | |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Store-and-forward | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 90 % |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 85 °C |
| Package dimensions (verified) | |
| Depth Verified | 14,9 cm |
| Gross Weight Verified | 0,644 kg |
| Height Verified | 4,9 cm |
| Width Verified | 20,8 cm |
| Performance | |
| Maximum transfer distance | 20000 m |
| Sensitivity | -23 dBmW |
| Tx power (max) | -3 dBmW |
| Tx power (min) | -9 dBmW |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | SC |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Product dimensions | |
| Net Weight (Product, kg) | 0,45 kg |
| Product Depth | 8,7 cm |
| Product Height | 3,2 cm |
| Product Width | 13,5 cm |
| Vendor information | |
| Brand Name | Planet |
| Warranty | 5 Anno(i) |
